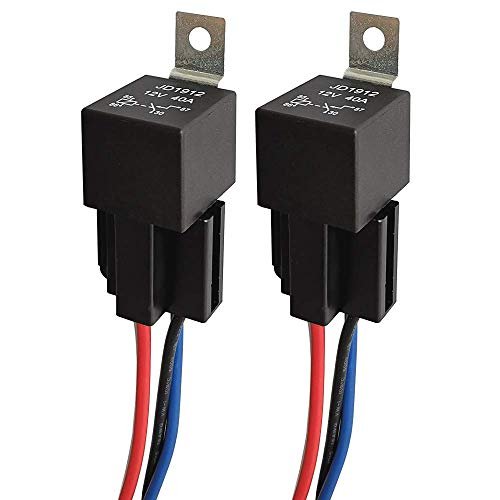

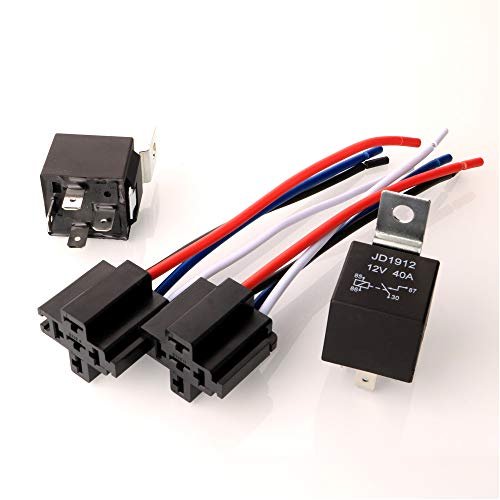

Gebildet JD1912 Car Relay Harness 12V 40A 4 Pin SPST 12AWG Harness Sockets with Color-labeled Wires for Automotive Truck Van Motorcycle Boat (Pack of 2)
£7.99
Brand: Gebildet
Color: 4 pins
Features:
- Brand new heavy duty SPST(Single Pole Single Throw) relays with color-labeled wires
- Rated operational voltage: 12V/ Switching Capability: 40A
- Minimum operating voltage 8V, corresponding minimum operating current is 100mA; Standard operating voltage 12V, corresponding standard operating current is 150mA.
- Small size/Low power consumption/High contact voltage/ High sensitivity
- Contact Material: Ag Alloy / Contact Resistance: ≤ 100MΩ. Life Expectancy Electrical: 100,000 Operation, Life Expectancy Mechanical: 10,000,000 Operation.
Package Dimensions: 28x222x120
Details: Interchangeable/Compatible with:
All automobiles and devices equipped with a 12 Volt DC power source.
Relay technical specification:
Relay load: 40A/12VDC
Contact Resistance: ≤ 100MΩ
Contact Material: Ag Alloy
Life Expectancy Electrical: 100,000 Operation
Life Expectancy Mechanical: 10,000,000 Operationss (at 300 Operations/min)
Coil power:1.8W
Operate Time: ≤15ms
Release Time: ≤10ms
Initial withstand voltage of Contact and Contact: 1000VAC/1min
Initial withstand voltage of Contact and Coil: 1500VAC/1min
Insulation Resistance: 100MΩ/( 500VDC)
Temperature Range: -55°C ~+70°C
Humidity Range:35%-80%
Atmospheric Pressure:86-106KPa
